Duplicate from fl399/deplot_plus_llm

Co-authored-by: Fangyu Liu <[email protected]>

.gitattributes

@@ -0,0 +1,34 @@
+*.7z filter=lfs diff=lfs merge=lfs -text
+*.arrow filter=lfs diff=lfs merge=lfs -text
+*.bin filter=lfs diff=lfs merge=lfs -text
+*.bz2 filter=lfs diff=lfs merge=lfs -text
+*.ckpt filter=lfs diff=lfs merge=lfs -text
+*.ftz filter=lfs diff=lfs merge=lfs -text
+*.gz filter=lfs diff=lfs merge=lfs -text
+*.h5 filter=lfs diff=lfs merge=lfs -text
+*.joblib filter=lfs diff=lfs merge=lfs -text
+*.lfs.* filter=lfs diff=lfs merge=lfs -text
+*.mlmodel filter=lfs diff=lfs merge=lfs -text
+*.model filter=lfs diff=lfs merge=lfs -text
+*.msgpack filter=lfs diff=lfs merge=lfs -text
+*.npy filter=lfs diff=lfs merge=lfs -text
+*.npz filter=lfs diff=lfs merge=lfs -text
+*.onnx filter=lfs diff=lfs merge=lfs -text
+*.ot filter=lfs diff=lfs merge=lfs -text
+*.parquet filter=lfs diff=lfs merge=lfs -text
+*.pb filter=lfs diff=lfs merge=lfs -text
+*.pickle filter=lfs diff=lfs merge=lfs -text
+*.pkl filter=lfs diff=lfs merge=lfs -text
+*.pt filter=lfs diff=lfs merge=lfs -text
+*.pth filter=lfs diff=lfs merge=lfs -text
+*.rar filter=lfs diff=lfs merge=lfs -text
+*.safetensors filter=lfs diff=lfs merge=lfs -text
+saved_model/**/* filter=lfs diff=lfs merge=lfs -text
+*.tar.* filter=lfs diff=lfs merge=lfs -text
+*.tflite filter=lfs diff=lfs merge=lfs -text
+*.tgz filter=lfs diff=lfs merge=lfs -text
+*.wasm filter=lfs diff=lfs merge=lfs -text
+*.xz filter=lfs diff=lfs merge=lfs -text
+*.zip filter=lfs diff=lfs merge=lfs -text
+*.zst filter=lfs diff=lfs merge=lfs -text
+*tfevents* filter=lfs diff=lfs merge=lfs -text

README.md

@@ -0,0 +1,14 @@
+---
+title: DePlot+LLM (multimodal chain-of-thought reasoning on plots)
+emoji: 🏢
+colorFrom: yellow
+colorTo: blue
+sdk: gradio
+sdk_version: 3.23.0
+app_file: app.py
+pinned: false
+license: mit
+duplicated_from: fl399/deplot_plus_llm
+---
+
+Check out the configuration reference at https://huggingface.co/docs/hub/spaces-config-reference

app.py

@@ -0,0 +1,283 @@
+import os
+import torch
+import openai
+import requests
+import gradio as gr
+import transformers
+from transformers import Pix2StructForConditionalGeneration, Pix2StructProcessor
+from peft import PeftModel
+
+## CoT prompts
+
+def _add_markup(table):
+    try:
+        parts = [p.strip() for p in table.splitlines(keepends=False)]
+        if parts[0].startswith('TITLE'):
+            result = f"Title: {parts[0].split(' | ')[1].strip()}\n"
+            rows = parts[1:]
+        else:
+            result = ''
+            rows = parts
+        prefixes = ['Header: '] + [f'Row {i+1}: ' for i in range(len(rows) - 1)]
+        return result + '\n'.join(prefix + row for prefix, row in zip(prefixes, rows))
+    except:
+        # just use the raw table if parsing fails
+        return table
+
+
+_TABLE = """Year | Democrats | Republicans | Independents
+2004 | 68.1% | 45.0% | 53.0%
+2006 | 58.0% | 42.0% | 53.0%
+2007 | 59.0% | 38.0% | 45.0%
+2009 | 72.0% | 49.0% | 60.0%
+2011 | 71.0% | 51.2% | 58.0%
+2012 | 70.0% | 48.0% | 53.0%
+2013 | 72.0% | 41.0% | 60.0%"""
+
+_INSTRUCTION = 'Read the table below to answer the following questions.'
+
+
+_TEMPLATE = f"""First read an example then the complete question for the second table.
+------------
+{_INSTRUCTION}
+{_add_markup(_TABLE)}
+Q: In which year republicans have the lowest favor rate?
+A: Let's find the column of republicans. Then let's extract the favor rates, they [45.0, 42.0, 38.0, 49.0, 51.2, 48.0, 41.0]. The smallest number is 38.0, that's Row 3.  Row 3 is year 2007. The answer is 2007.
+Q: What is the sum of Democrats' favor rates of 2004, 2012, and 2013?
+A: Let's find the rows of years 2004, 2012, and 2013. We find Row 1, 6, 7. The favor dates of Demoncrats on that 3 rows are 68.1, 70.0, and 72.0. 68.1+70.0+72=210.1. The answer is 210.1.
+Q: By how many points do Independents surpass Republicans in the year of 2011?
+A: Let's find the row with year = 2011. We find Row 5. We extract Independents and Republicans' numbers. They are 58.0 and 51.2. 58.0-51.2=6.8. The answer is 6.8.
+Q: Which group has the overall worst performance?
+A: Let's sample a couple of years. In Row 1, year 2004, we find Republicans having the lowest favor rate 45.0 (since 45.0<68.1, 45.0<53.0). In year 2006, Row 2, we find Republicans having the lowest favor rate 42.0 (42.0<58.0, 42.0<53.0). The trend continues to other years. The answer is Republicans.
+Q: Which party has the second highest favor rates in 2007?
+A: Let's find the row of year 2007, that's Row 3. Let's extract the numbers on Row 3: [59.0, 38.0, 45.0]. 45.0 is the second highest. 45.0 is the number of Independents. The answer is Independents.
+{_INSTRUCTION}"""
+
+
+## alpaca-lora
+
+# debugging...
+assert (
+    "LlamaTokenizer" in transformers._import_structure["models.llama"]
+), "LLaMA is now in HuggingFace's main branch.\nPlease reinstall it: pip uninstall transformers && pip install git+https://github.com/huggingface/transformers.git"
+from transformers import LlamaTokenizer, LlamaForCausalLM, GenerationConfig
+
+tokenizer = LlamaTokenizer.from_pretrained("decapoda-research/llama-7b-hf")
+
+BASE_MODEL = "decapoda-research/llama-7b-hf"
+LORA_WEIGHTS = "tloen/alpaca-lora-7b"
+
+if torch.cuda.is_available():
+    device = "cuda"
+else:
+    device = "cpu"
+
+try:
+    if torch.backends.mps.is_available():
+        device = "mps"
+except:
+    pass
+
+if device == "cuda":
+    model = LlamaForCausalLM.from_pretrained(
+        BASE_MODEL,
+        load_in_8bit=False,
+        torch_dtype=torch.float16,
+        device_map="auto",
+    )
+    model = PeftModel.from_pretrained(
+        model, LORA_WEIGHTS, torch_dtype=torch.float16, force_download=True
+    )
+elif device == "mps":
+    model = LlamaForCausalLM.from_pretrained(
+        BASE_MODEL,
+        device_map={"": device},
+        torch_dtype=torch.float16,
+    )
+    model = PeftModel.from_pretrained(
+        model,
+        LORA_WEIGHTS,
+        device_map={"": device},
+        torch_dtype=torch.float16,
+    )
+else:
+    model = LlamaForCausalLM.from_pretrained(
+        BASE_MODEL, device_map={"": device}, low_cpu_mem_usage=True
+    )
+    model = PeftModel.from_pretrained(
+        model,
+        LORA_WEIGHTS,
+        device_map={"": device},
+    )
+
+
+if device != "cpu":
+    model.half()
+model.eval()
+if torch.__version__ >= "2":
+    model = torch.compile(model)
+
+
+## FLAN-UL2
+HF_TOKEN = os.environ.get("API_TOKEN", None)
+API_URL = "https://api-inference.huggingface.co/models/google/flan-ul2"
+headers = {"Authorization": f"Bearer {HF_TOKEN}"}
+def query(payload):
+	response = requests.post(API_URL, headers=headers, json=payload)
+	return response.json()
+
+## OpenAI models
+openai.api_key = os.environ.get("OPENAI_TOKEN", None)
+def set_openai_api_key(api_key):
+    if api_key and api_key.startswith("sk-") and len(api_key) > 50:
+        openai.api_key = api_key
+
+def get_response_from_openai(prompt, model="gpt-3.5-turbo", max_output_tokens=256):
+  messages = [{"role": "assistant", "content": prompt}]
+  response = openai.ChatCompletion.create(
+      model=model,
+      messages=messages,
+      temperature=0.7,
+      max_tokens=max_output_tokens,
+      top_p=1,
+      frequency_penalty=0,
+      presence_penalty=0,
+  )
+  ret = response.choices[0].message['content']
+  return ret
+
+## deplot models
+model_deplot = Pix2StructForConditionalGeneration.from_pretrained("google/deplot", torch_dtype=torch.bfloat16).to(0)
+processor_deplot = Pix2StructProcessor.from_pretrained("google/deplot")
+
+def evaluate(
+    table,
+    question,
+    llm="alpaca-lora",
+    input=None,
+    temperature=0.1,
+    top_p=0.75,
+    top_k=40,
+    num_beams=4,
+    max_new_tokens=128,
+    **kwargs,
+):
+    prompt_0shot = _INSTRUCTION + "\n" + _add_markup(table) + "\n" + "Q: " + question + "\n" + "A:"
+    prompt = _TEMPLATE + "\n" + _add_markup(table) + "\n" + "Q: " + question + "\n" + "A:"
+    if llm == "alpaca-lora":
+        inputs = tokenizer(prompt, return_tensors="pt")
+        input_ids = inputs["input_ids"].to(device)
+        generation_config = GenerationConfig(
+            temperature=temperature,
+            top_p=top_p,
+            top_k=top_k,
+            num_beams=num_beams,
+            **kwargs,
+        )
+        with torch.no_grad():
+            generation_output = model.generate(
+                input_ids=input_ids,
+                generation_config=generation_config,
+                return_dict_in_generate=True,
+                output_scores=True,
+                max_new_tokens=max_new_tokens,
+            )
+        s = generation_output.sequences[0]
+        output = tokenizer.decode(s)
+    elif llm == "flan-ul2":
+        output = query({"inputs": prompt_0shot})[0]["generated_text"]
+    elif llm == "gpt-3.5-turbo":
+        try:
+            output = get_response_from_openai(prompt_0shot)
+        except:
+            output = "<Remember to input your OpenAI API key ☺>"
+    else:
+        RuntimeError(f"No such LLM: {llm}")
+
+    return output
+
+
+def process_document(image, question, llm):
+    # image = Image.open(image)
+    inputs = processor_deplot(images=image, text="Generate the underlying data table for the figure below:", return_tensors="pt").to(0, torch.bfloat16)
+    predictions = model_deplot.generate(**inputs, max_new_tokens=512)
+    table = processor_deplot.decode(predictions[0], skip_special_tokens=True).replace("<0x0A>", "\n")
+
+    # send prompt+table to LLM
+    res = evaluate(table, question, llm=llm)
+    if llm == "alpaca-lora":
+        return [table, res.split("A:")[-1]]
+    else:
+        return [table, res]
+
+theme = gr.themes.Monochrome(
+    primary_hue="indigo",
+    secondary_hue="blue",
+    neutral_hue="slate",
+    radius_size=gr.themes.sizes.radius_sm,
+    font=[gr.themes.GoogleFont("Open Sans"), "ui-sans-serif", "system-ui", "sans-serif"],
+)
+
+with gr.Blocks(theme=theme) as demo:
+    with gr.Column():
+      gr.Markdown(
+            """<h1><center>DePlot+LLM: Multimodal chain-of-thought reasoning on plots</center></h1>
+            <p>
+            This is a demo of DePlot+LLM for QA and summarisation. <a href='https://arxiv.org/abs/2212.10505' target='_blank'>DePlot</a> is an image-to-text model that converts plots and charts into a textual sequence. The sequence then is used to prompt LLM for chain-of-thought reasoning. The current underlying LLMs are <a href='https://huggingface.co/spaces/tloen/alpaca-lora' target='_blank'>alpaca-lora</a>, <a href='https://huggingface.co/google/flan-ul2' target='_blank'>flan-ul2</a>, and <a href='https://openai.com/blog/chatgpt' target='_blank'>gpt-3.5-turbo</a>. To use it, simply upload your image and type a question or instruction and click 'submit', or click one of the examples to load them. Read more at the links below.
+            </p>
+            """
+            )
+
+    with gr.Row():
+      with gr.Column(scale=2):
+        input_image = gr.Image(label="Input Image", type="pil", interactive=True)
+        #input_image.style(height=512, width=512)
+        instruction = gr.Textbox(placeholder="Enter your instruction/question...", label="Question/Instruction")
+        llm = gr.Dropdown(["alpaca-lora", "flan-ul2", "gpt-3.5-turbo"], label="LLM")
+        openai_api_key_textbox = gr.Textbox(value='',
+                                            placeholder="Paste your OpenAI API key (sk-...) and hit Enter (if using OpenAI models, otherwise leave empty)",
+                                            show_label=False, lines=1, type='password')
+        submit = gr.Button("Submit", variant="primary")
+
+      with gr.Column(scale=2):
+        with gr.Accordion("Show intermediate table", open=False):
+          output_table = gr.Textbox(lines=8, label="Intermediate Table")
+        output_text = gr.Textbox(lines=8, label="Output")
+
+    gr.Examples(
+        examples=[

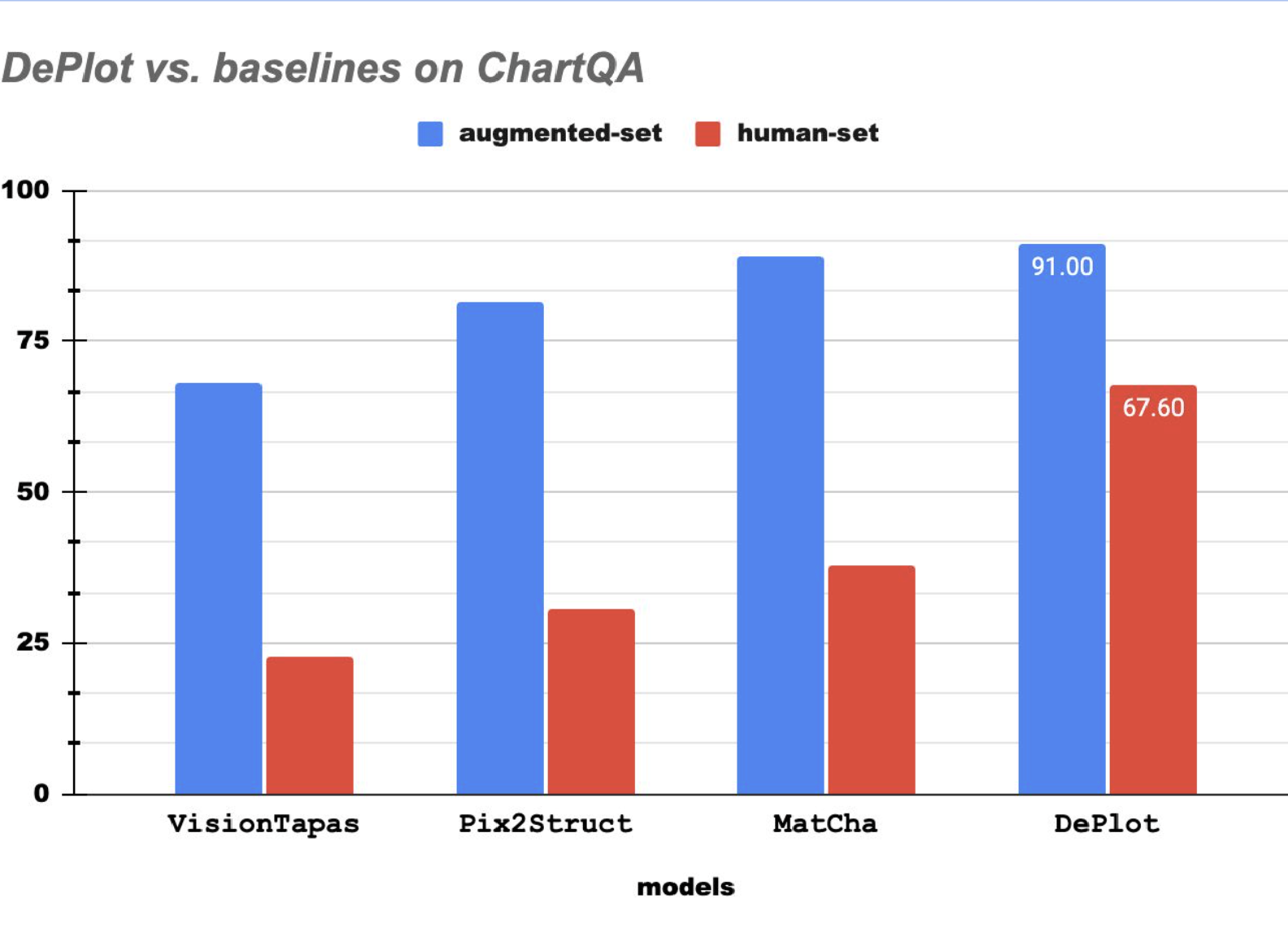

+            ["deplot_case_study_6.png", "Rank the four methods according to model performances. By how much does deplot outperform the second strongest approach on average across the two sets?  Show the computation.", "gpt-3.5-turbo"],

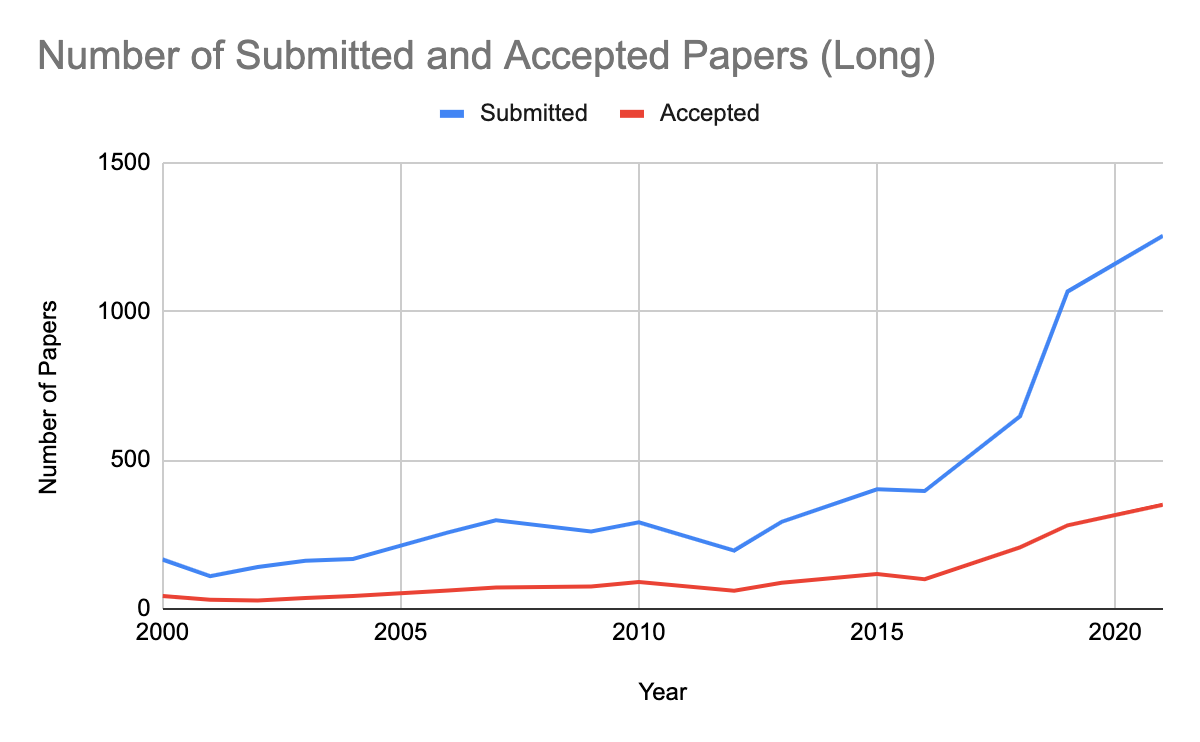

+            ["deplot_case_study_4.png", "What are the acceptance rates? And how does the acceptance change over the years?", "gpt-3.5-turbo"],

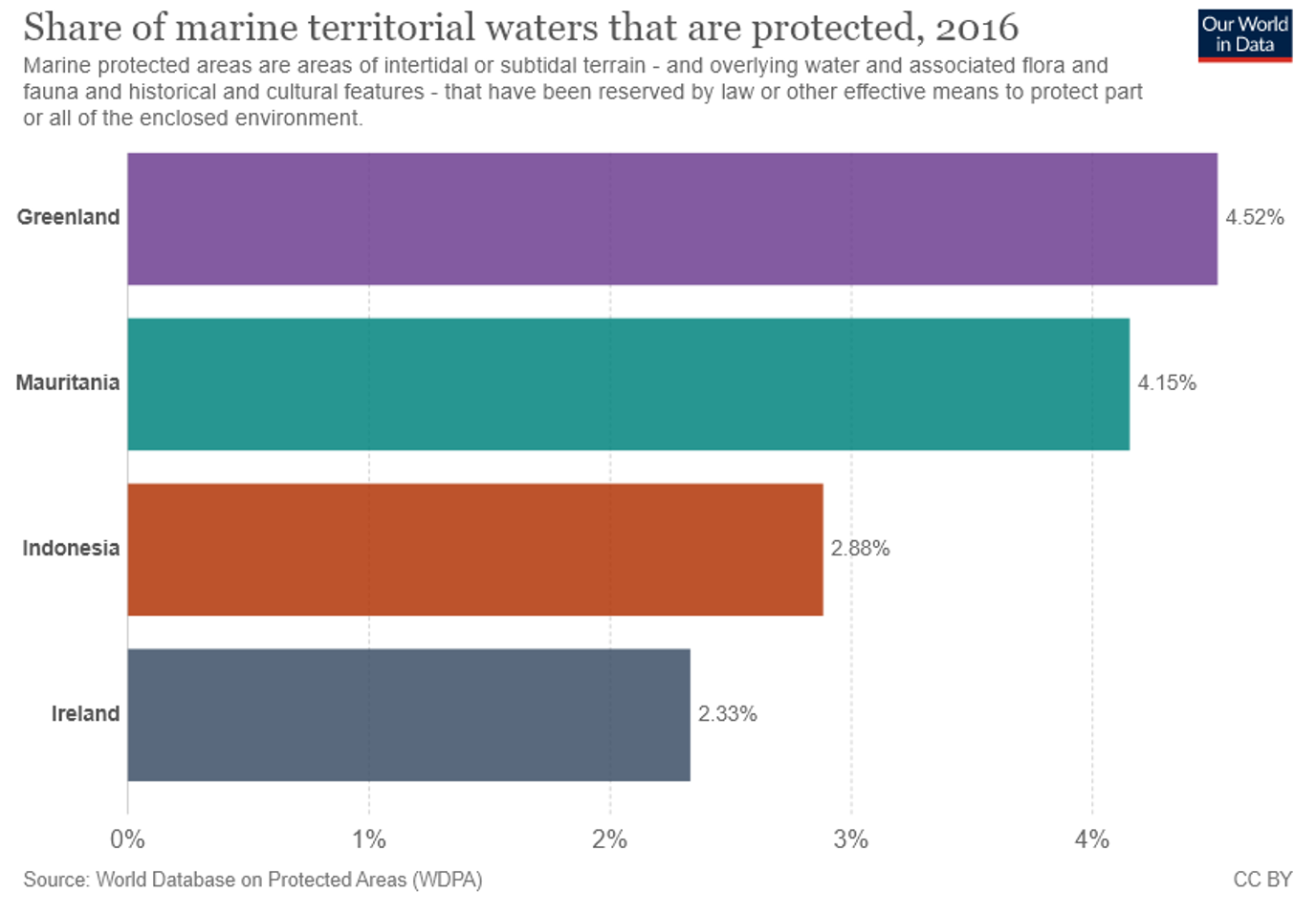

+            ["deplot_case_study_m1.png", "Summarise the chart for me please.", "gpt-3.5-turbo"],
+            ["deplot_case_study_m1.png", "What is the sum of numbers of Indonesia and Ireland? Remember to think step by step.", "alpaca-lora"],
+            ["deplot_case_study_3.png", "By how much did China's growth rate drop? Think step by step.", "alpaca-lora"],
+            ["deplot_case_study_4.png", "How many papers are submitted in 2020?", "flan-ul2"],

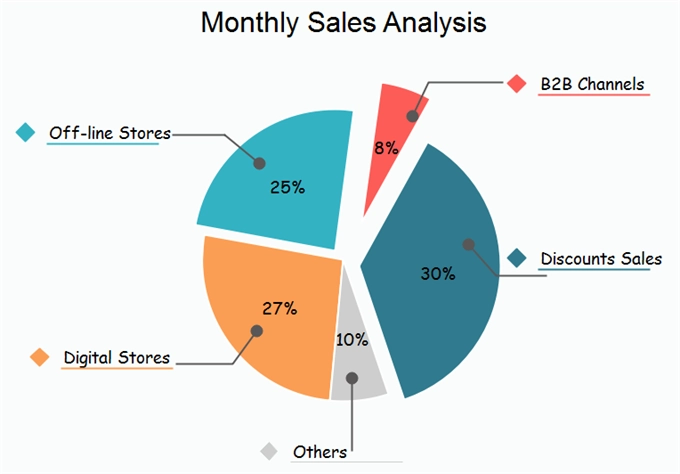

+            ["deplot_case_study_5.png", "Which sales channel has the second highest portion?", "flan-ul2"],

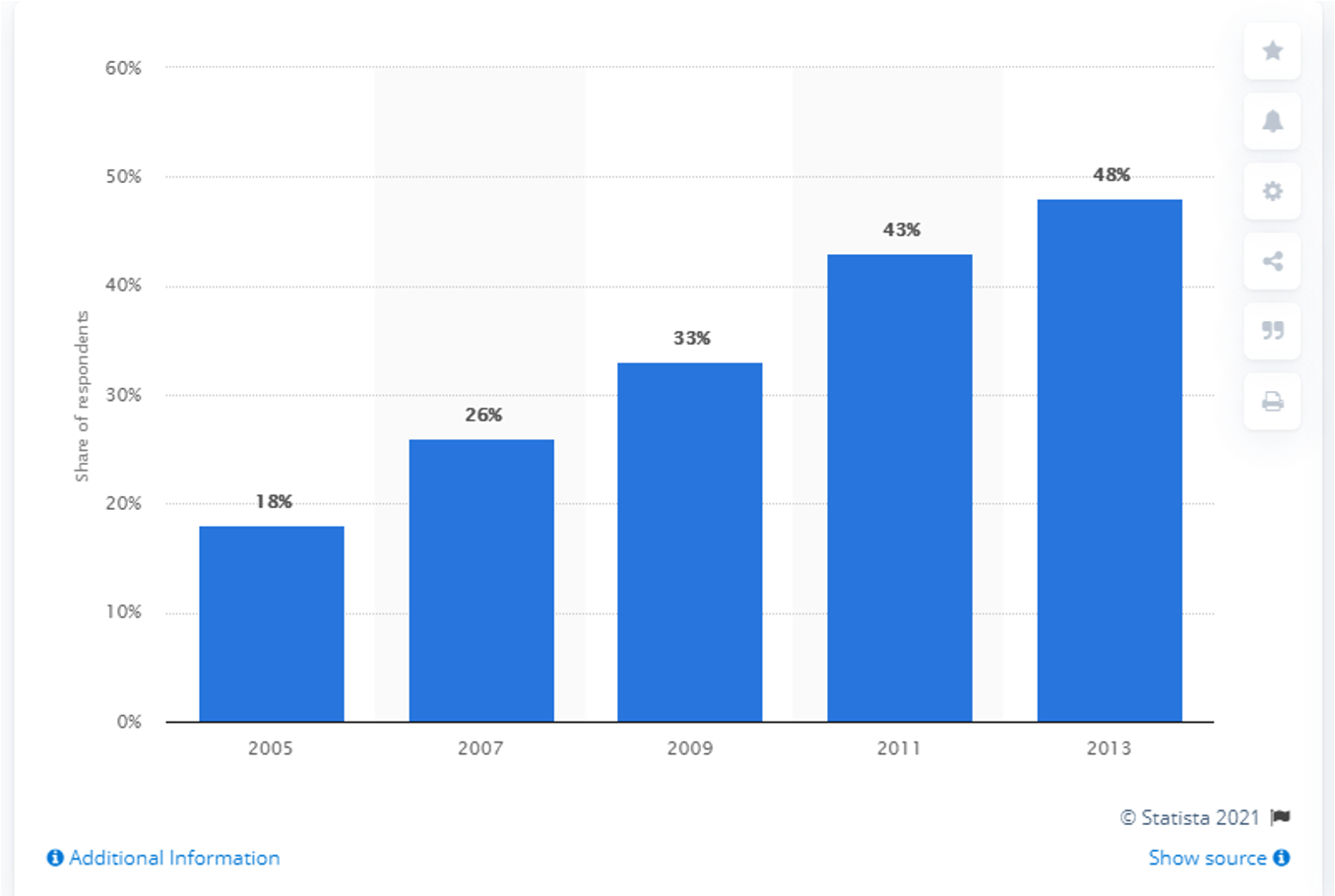

+            #["deplot_case_study_x2.png", "Summarise the chart for me please.", "alpaca-lora"],
+            #["deplot_case_study_4.png", "How many papers are submitted in 2020?", "alpaca-lora"],
+            #["deplot_case_study_m1.png", "Summarise the chart for me please.", "alpaca-lora"],
+            #["deplot_case_study_4.png", "acceptance rate = # accepted / #submitted . What is the acceptance rate of 2010?", "flan-ul2"],
+            #["deplot_case_study_m1.png", "Summarise the chart for me please.", "flan-ul2"],
+        ],
+        cache_examples=True,
+        inputs=[input_image, instruction, llm],
+        outputs=[output_table, output_text],
+        fn=process_document
+    )
+
+    gr.Markdown(
+            """<p style='text-align: center'><a href='https://arxiv.org/abs/2212.10505' target='_blank'>DePlot: One-shot visual language reasoning by plot-to-table translation</a></p>"""
+    )
+    openai.api_key = ""
+    openai_api_key_textbox.change(set_openai_api_key,
+                                      inputs=[openai_api_key_textbox],
+                                      outputs=[])
+    openai_api_key_textbox.submit(set_openai_api_key,
+                                      inputs=[openai_api_key_textbox],
+                                      outputs=[])
+    submit.click(process_document, inputs=[input_image, instruction, llm], outputs=[output_table, output_text])
+    instruction.submit(
+        process_document, inputs=[input_image, instruction, llm], outputs=[output_table, output_text]
+    )
+
+demo.queue(concurrency_count=1).launch()

requirements.txt

@@ -0,0 +1,10 @@
+torch
+git+https://github.com/huggingface/transformers
+datasets
+loralib
+sentencepiece
+accelerate
+bitsandbytes
+git+https://github.com/huggingface/peft.git
+gradio
+openai
